The Systems

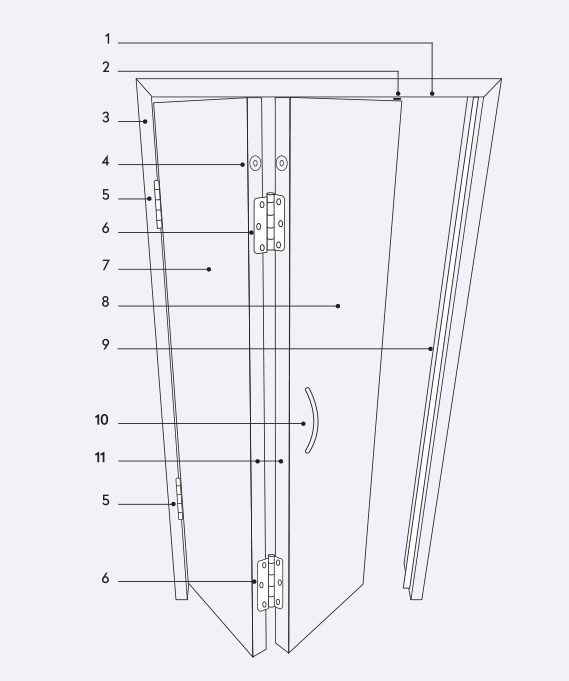

Overview Bi-Fold door
  1. Standard header / rebated aluminium guide channel.
  2. Guide wheel rebated into top edge of leading door.
  3. Standard jambs.
  4. Magnetic door closures.
  5. Standard butt radius hinges 90 x 60mm.
  6. Bi-Fold pat. pend. radius hinges 90 x 60mm.
  7. Hinged door.
  8. Leading door.
  9. Standard door stops.
  10. Preferred position for door handle fixed to leading door 60mm from leading edge.
  11. Closing bevels.

The Bi-Fold System Components

https://www.bifoldsystems.co.nz/uploads/images/door-hingleft-right.jpg

Bi-Fold Systems patented pending Hinge

Left Side

Leading door edge Left Side opening.

Right Side

Leading door edge Right Side opening. Remove & invert hinge pin.

https://www.bifoldsystems.co.nz/uploads/images/door-system-guide-wheel.jpg

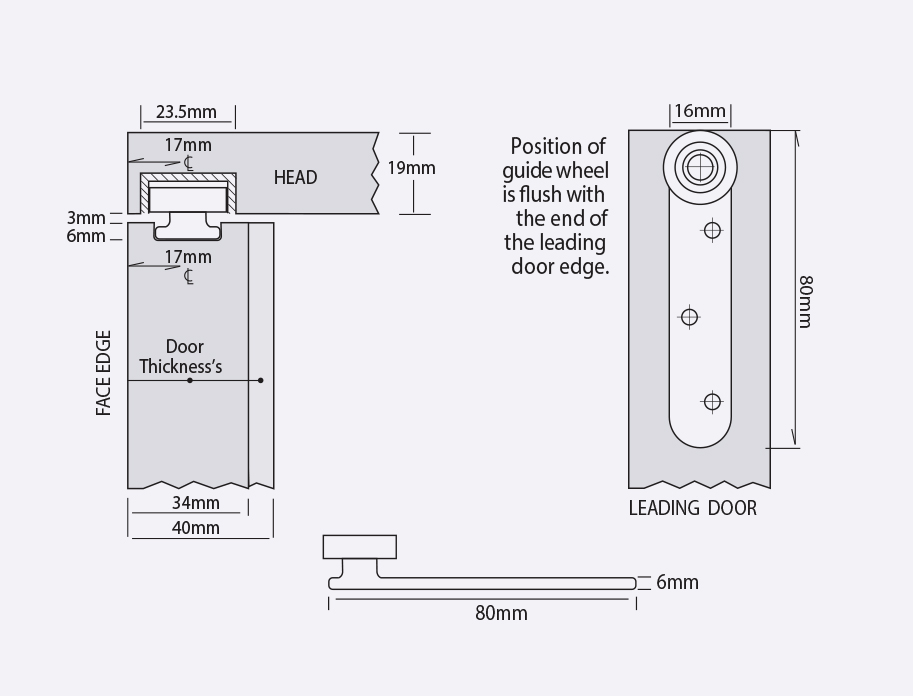

Overview Bi-Fold guide wheel

Routing of the guide wheel is 80mm length, 16mm width, 6mm depth. On 34mm & 40mm door thickness’s, centre for the guide wheel is 17mm from the leading door face edge.

Position of guide wheel is flush with the end of the leading door edge.

https://www.bifoldsystems.co.nz/uploads/images/header-with-glued.jpg

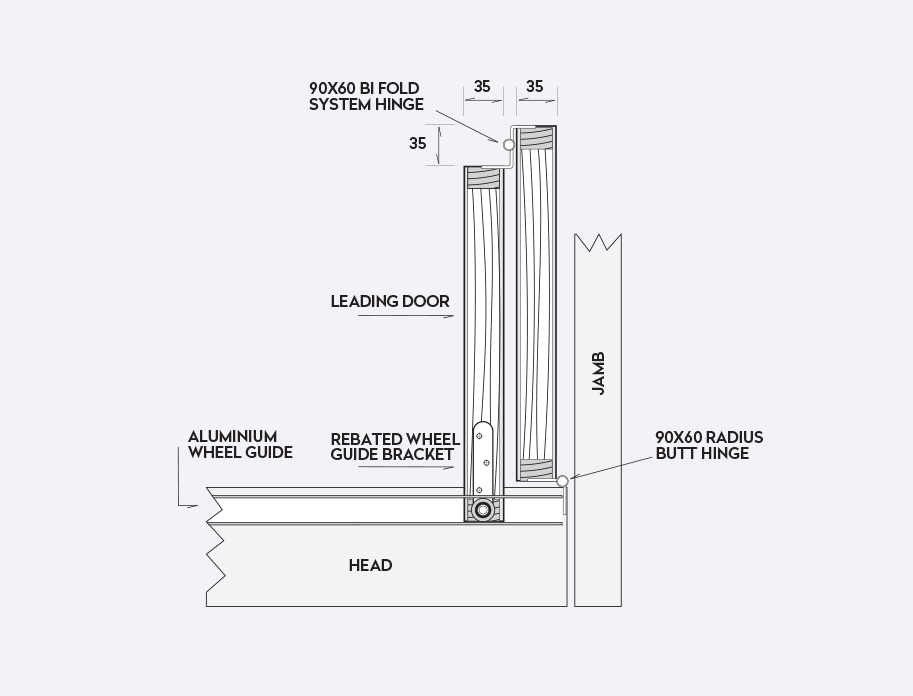

Header with glued in aluminium channel

The glued in rebated aluminium channel is designed not to be seen adding to the visual ascetics of the system.

THE BI-FOLD SYSTEM

STANDARD DOUBLE BI-FOLD & STANDARD SINGLE BI-FOLD

STANDARD DOUBLE BI-FOLD

4 DOOR CONFIGURATION

Kit is supplied with: 6 Bi-Fold Systems hinges, 6 standard hinges, 1 x 2100mm header with aluminium guide track pre glued in place, 2 x 2100mm jambs, 2 guide wheels, 3 x 2100mm door stops, 2 magnetic door closure sets, screws and instructions for installation.

Max Panel Height 2000mm
Min Panel Thickness 34mm
Max Panel Weight 25kg
Max number of panels 4
Max Panel Width 500mm

STANDARD SINGLE BI-FOLD

2 DOOR CONFIGURATION

Kit is supplied with: 3 Bi-Fold Systems hinges, 3 standard hinges, 1 standard header, 1500mm x 112mm x18mm with aluminium guide track pre glued in place, 2 standard jambs 2100mm x 112mm x18mm, 1 guide wheels, 3 standard door stops 2100mm x 30mm x 10mm, 1 magnetic door closure sets, screws and instructions for installation.

Max Panel Height 2000mm
Max Panel Weight 25kg
Max Panel Width 700mm
Min Panel Thickness 34mm
Max number of panels 2

https://www.bifoldsystems.co.nz/uploads/images/glass-door-2.jpg

Installation
instructions

  1. Check all listed components are included.
  2. Standard header, are supplied over length @2100 & 1500mm, jambs & door stops @2100mm (NOTE: all closing bevels to doors must be removed by planning to square, prior to routing hinges into doors.)

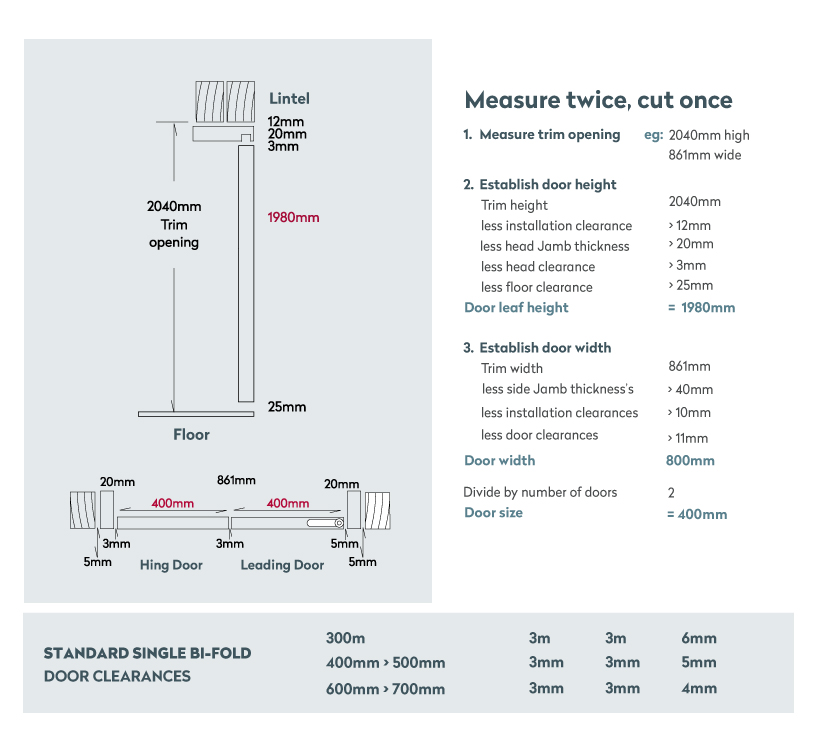

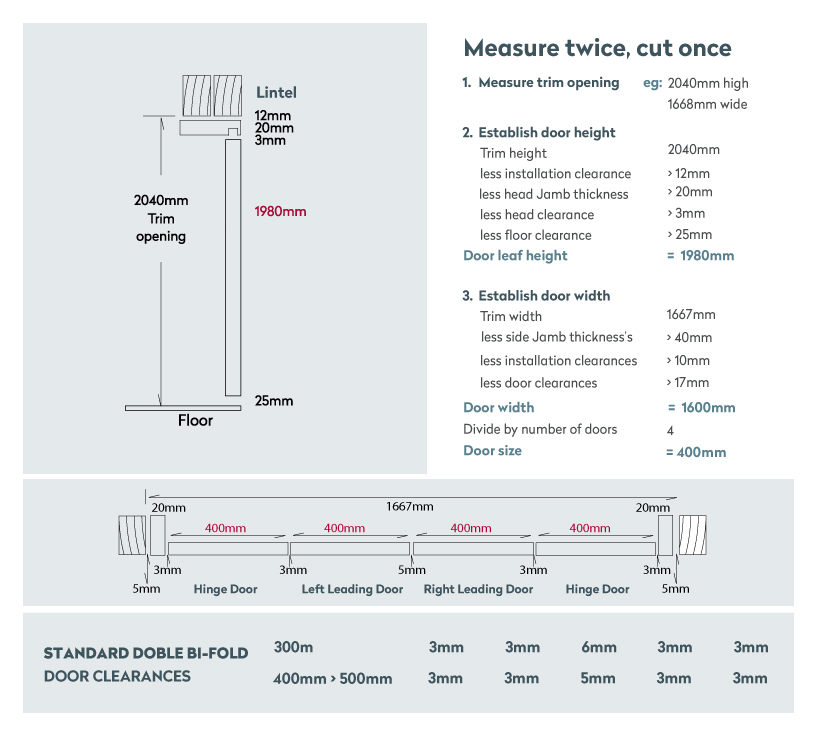

  3. Measure width and heights and cut header and jambs accordingly.
  4. Header with aluminium channel can be cut with Tungsten tip blade.
  5. Route all hinge settings into door sides and jambs 90mm x 23.5mm x 2mm, route wheel setting into top of leading door(s) 80mm x 16mm x 6mm, drill 22mm x 8mm holes for magnets, then assemble frame.
  6. Stand up assembled frame with doors and place into trimmed out wall frame.
  7. Using wedges ensure all jambs and head clearances are correct and true in alignment.
  8. Fix jambs to wall frames as per normal procedure.
  9. Fit and fix door stops, door handles of choice, architraves and trim.
  10. DO NOT paint the wheel guide roller
